Poppet valves NG3-Mini
The 2/2-way seating valve in slip-in cartridge form is the central control element of virtually all directly-controlled seating valves in nominal size 3-Mini. The seating valve cartridge, the spring, one O-ring and a washer are supplied separately. A solenoid (VDE standard 0580) is an optional addition.

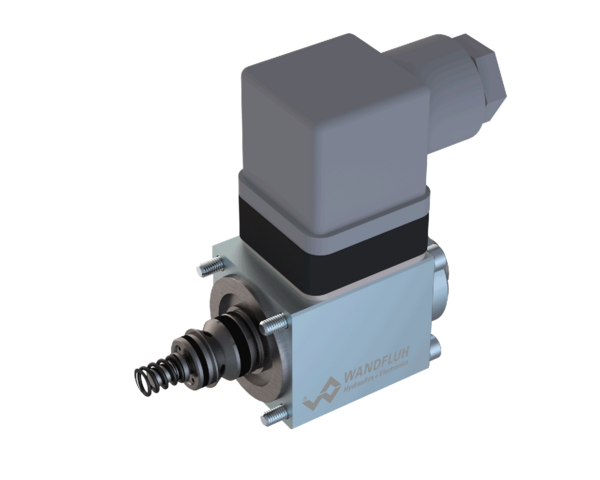

Solenoid poppet valve cartridge
- normally closed
- Qmax = 6 l/min
- p max = 350 bar
Application
Wandfluh poppet valves can be used anywhere absolutely leak tight closing functions are important. Completely sealed loading, gripping and clamping operations are all important functions which Wandfluh poppet valves can perform. Cartridge typ poppet valves can be neatly accommodated in valve blocks. Cavity tools are available for hire or sale for machi- ning aluminium or steel. See data sheet register no. 2.13.
