Solenoid
 Solenoids                                                                                               Solenoids

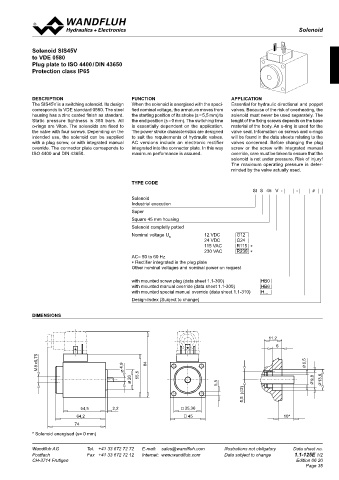

 CHARACTERISTICS  DC  AC  Solenoid SIS45V
 Static pressure tightness   160 bar (seal diameter of valve    Totale stroke  (mm)   5,5  5,5  to VDE 0580
    max. 26 mm)   Working stroke        (mm)   2,5  2,5
 Coil winding insulation class  H  Nominal power       (W)   30  Plug plate to ISO 4400 / DIN 43650
 Connection / Power supply   Over  device plug connection to    (VA)  35  Protection class IP65
    ISO 4400 / DIN 43650, (2P+E),    Armature weight  (kg)   0,055    0,055
    other connections on request.  Solenoid weight       (kg)   0,76  0,76
 Protection class EN 60 529   IP65  Voltage range       (VDC)   10-250
 Relative duty factor   100 %  (VAC)  40-250∗
 Reference temperature   50 °C  DESCRIPTION    fuNCTION                           APPLICATION
 Seal   Viton, other on request  The SIS45V is a switching solenoid. Its design   When the solenoid is energised with the speci-  Essential for hydraulic directional and poppet
 Fluid   Mineral oil, other fluid on request  corresponds to VDE standard 0580. The steel   fied nominal voltage, the armature moves from   valves. Because of the risk of overheating, the
 Switching cycles   15 000/h  ∗   For AC voltages below 40 VAC  DC solenoids plus rectifier plugs    housing has a zinc coated finish as standard.   the starting position of its stroke (s = 5,5 mm) to   solenoid must never be used separately. The
 Mounting screws   4 x M5 (Quality 8.8)     are available.  Static pressure tightness is 350 bars. All     the end position (s = 0 mm). The switching time   lenght of the fixing screws depends on the base
 Housing   Zinc coated steel housing, other       21 VDC  to  24 VAC  o-rings are Viton. The solenoids are fixed to   is essentially dependent on the application.   material of the body. An o-ring is used for the
    surface treatments on request.     32 VDC  to  36 VAC  the valve with four screws. Depending on the   The power stroke characteristics are designed   valve seal. Information on screws and o-rings
            intended use, the solenoid can be supplied   to suit the requirements of hydraulic valves.   will be found in the data sheets relating to the
            with a plug screw, or with integrated manual   AC versions include an electronic rectifier   valves concerned. Before changing the plug
    12VDC   24VDC   115VAC  230VAC  override. The connector plate corresponds to   integrated into the connector plate. In this way   screw or the screw with integrated manual
 Nominal resistance (Ω)   5   21,8   445   1'400  ISO 4400 and DIN 43650.  maximum performance is assured.  override, care must be taken to ensure that the
 Number of windings (-)   770   1’560   7’000   13’000                            solenoid is not under pressure. Risk of injury!
 Inductivity (mH)   16   72   -   -                                               The  maximum  operating  pressure  is  deter-
                                                                                  minded by the valve actually used.
                                               TyPE CODE
                                                                                          SI  S  45  V  -   -   #
                                               Solenoid
                                               Industrial execution
 PERFORMANCE  ACCESSOIRES                      Super
 F = f (s)   Force-stroke characteristics  Plug HB0   ∗ Article No. 239.2033  Square 45 mm housing
 Plug with integrated manual override HB6   ∗ Article No. 253.8001  Solenoid completly potted
 F [N]     ∗ acc. data sheet 1.1-300           Nominal voltage U         12 VDC     G12
 160  K0063                                                 N            24 VDC     G24
 Special manual override    see data sheet 1.1-310                       115 VAC    R115  ∗
 140                                                                     230 VAC    R230  ∗
 Plug grey   Article No. 219.2001              AC= 50 to 60 Hz
 Plug black   Article No. 219.2002             ∗ Rectifier integrated in the plug plate
 120                                           Other nominal voltages and nominal power on request
 Rectifier plug grey   Article No. 219.2105
 100  Rectifier plug black   Article No. 219.2106   with mounted screw plug (data sheet 1.1-300)   HB0
                                               with mounted manual override (data sheet 1.1-300)   HB6
                                               with mounted special manual override (data sheet 1.1-310)   H...
 80
                                               Design-Index (Subject to change)
 60
 1          DIMENSIONS
 40
 2
 20                                                                                            11,2
                                                                                                  6
 0
 0  1  2  3  4  5  s [mm]
              8 x0,75                               84                                                      6,5

              M                             4,9
                                               26  55,5                                                        9,8  13,6
                                                                             5,5
 1: U = 100 % U    Reference temperature = 20 °C (30W)                                (∅2)
 N
 2: U = 90 % U    Reference temperature = 50 °C
 N
       Solenoid in operating temperature (19W)                                        5,5
 The values refer to U  = 24 VDC.   54,5  2,2                     35,36
 N
 With other nominal voltages deviations can occur.
 For curve 2 the solenoids has been mounted on a body  46 x 64.  64,2  45                           10*
                           74
 Technical explanation see data sheet 1.1-400  * Solenoid energised (s= 0 mm)

 Wandfluh AG   Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.   Wandfluh AG   Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
 Postfach   Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-120E 2/2   Postfach   Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-125E 1/2
 CH-3714 Frutigen                   Edition 06 20  CH-3714 Frutigen                                      Edition 06 20
