Solenoid

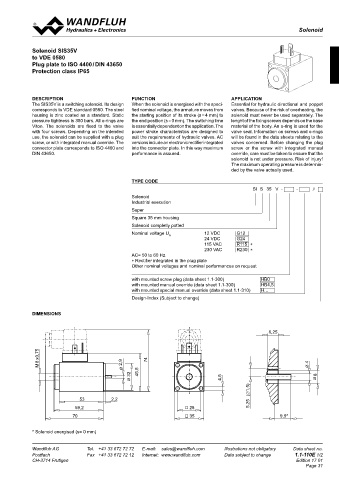

 Solenoids                                                                                               Solenoids

 CHARACtERIStICS  DC  AC  Solenoid SIS35V
 Static pressure tightness   160 bar (seal diameter of valve    Totale stroke          (mm)   4       4  to VDE 0580
    max. 27 mm)  Working stroke       (mm)   1,7       1,7  Plug plate to ISO 4400 / DIN 43650
    With seal diameter of valve = 32mm  Nominal power       (W)   22
    Static pressure tightness = 120 bar               (VA)          25  Protection class IP65
 Coil winding insulation class   H  Armature weight       (kg)   0,038    0,038
 Connection / Power supply   Over device plug connection    Solenoid weight       (kg)   0,45       0,45
    to ISO 4400 / DIN 43650, (2P+E),    Voltage range       (VDC)   10-250
    other connections on request              (VAC)          24-250
 Protection class EN 60529   IP65  DESCRIPTION  FUNCTION                          APPLICATION
 Relative duty factor   100 %  The SIS35V is a switching solenoid. Its design   When the solenoid is energised with the speci-  Essential for hydraulic directional and poppet
 Reference temperature   50 °C  corresponds to VDE standard 0580. The steel   fied nominal voltage, the armature moves from   valves. Because of the risk of overheating, the
 Seal   Viton, other on request  housing is zinc coated as a standard. Static   the starting position of its stroke (s = 4 mm) to   solenoid must never be used separately. The
 Fluid   Mineral oil, other fluid on request  pressure tightness is 350 bars. All o-rings are   the end position (s = 0 mm). The switching time   lenght of the fixing screws depends on the base
 Switching cycles   15 000/h     12VDC   24VDC   115VAC  230VAC  Viton.  The  solenoids  are  fixed  to  the  valve   is essentially dependent on the application. The   material of the body. An o-ring is used for the
 Mounting screws   4 x M4 (Quality 8.8)  Nominal resistance (Ω)   7,2   25   420   1’500  with four screws. Depending on the intended   power stroke characteristics are designed to   valve seal. Information on screws and o-rings
 Housing   Zinc coated steel housing, other    Number of windings (-)   800   1’550   5’930   11’400  use, the solenoid can be supplied with a plug   suit the requirements of hydraulic valves. AC   will be found in the data sheets relating to the
    surface treatments on request  Inductivity (mH)   6   22   -   -  screw, or with integrated manual override. The   versions include an electronic rectifier integrated   valves concerned. Before changing the plug
            connector plate corresponds to ISO 4400 and   into the connector plate. In this way maximum   screw  or the screw with  integrated manual
            DIN 43650.                         performance is assured.            override, care must be taken to ensure that the
                                                                                  solenoid is not under pressure. Risk of injury!
                                                                                  The maximum operating pressure is determin-
                                                                                  ded by the valve actually used.
                                               TYPE CODE
                                                                                          SI  S  35  V  -   -   #
 PERfORmANCE  ACCESSOIRES                      Solenoid
 F = f (s)   Force-stroke characteristics      Industrial execution
 Plug HB0   ∗ Article No. 239.2033
 Plug with integrated manual override HB4,5   ∗ Article No. 253.8000  Super
 F [N]  ∗ acc. data sheet 1.1-300
 130  K0116                                    Square 35 mm housing
 120  Special manual override    see data sheet 1.1-310  Solenoid completly potted
                                               Nominal voltage U         12 VDC     G12
 110  Plug grey   Article No. 219.2001                      N            24 VDC     G24
 Plug black   Article No. 219.2002                                       115 VAC    R115  ∗
 100
                                                                         230 VAC    R230  ∗
 90                                            AC= 50 to 60 Hz
                                               ∗ Rectifier integrated in the plug plate
 80                                            Other nominal voltages and nominal performances on request
 70
 60                                            with mounted screw plug (data sheet 1.1-300)   HB0
                                               with mounted manual override (data sheet 1.1-300)   HB4,5
 50                                            with mounted special manual override (data sheet 1.1-310)   H...
 1
 40                                            Design-Index (Subject to change)
 30
 2
 20         DIMENSIONS
 10
 0                                                                                             6,25
 0  0.5 1 1.5 2  2.5  3 3.5 4  s [mm]
               8 x0,75                               74


 1: U = 100 % U    Reference temperature = 20 °C (20W)  M  2,9                                               4
 N
 2: U = 90 % U    Reference temperature = 50 °C   32  45,5                                                      8
 N
       Solenoid in operating temperature (12W)                                 4,5
 The values refer to U  = 24 VDC.
 N
 With other nominal voltages deviations can occur.                                       (∅1,5)
 For curve 2 the solenoid has been mounted on a body  38 x 54.
                             53         2,2
                           59,2                                     28                   5,25
                           70                                       35                             9,9*

 Technical explanation see data sheet 1.1-400  * Solenoid energised (s= 0 mm)
