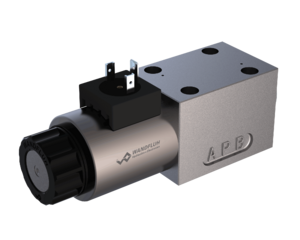

Solenoid operated spool valve with inductive switching position monitoring WDMFA06_P

Solenoid operated spool valves direct operated NG6

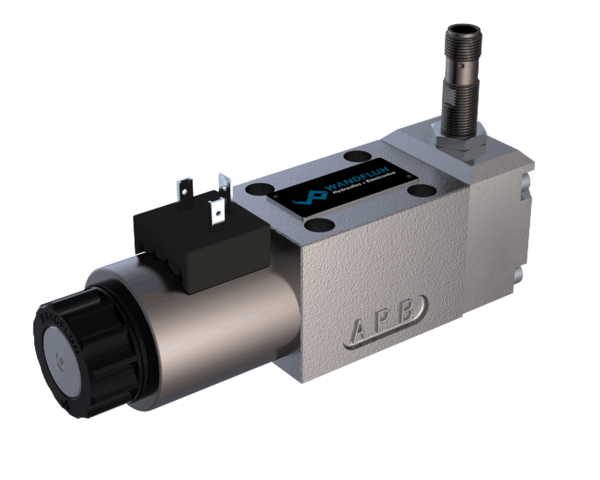

Spool valve according to data sheet 1.2-59 with additional inductive switching position monitoring. The contactless sensor transmits the spool position to a step signal.

Switching valves Solenoid operated spool valve with inductive switching position monitoring WDMFA06_P

Flange construction

  • 4/2-way impulse execution, dentented
  • 4/3-way with spring centered mid position
  • 4/2-way with spring reset
  • Qmax = 80 l/min
  • pmax = 350 bar
