The PI35_V is a proportional solenoid. Its design corresponds to VDE standard 0580. The steel housing is zinc coated as a standard. Static pressure tightness is 350 bars. All o-rings are Viton. The solenoids are fixed to the valve with four screws. Depending on the intended use, the solenoid can be supplied with a plug screw, or with integrated manual override. Optional are available: Version with shortened total stroke «M», or version with shortened total stroke and dampened armature «P». The connector plate corresponds to ISO 4400 and DIN 43650.

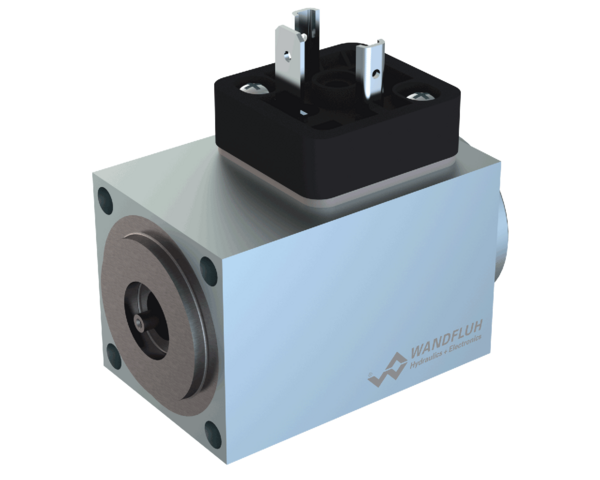

Proportional solenoid PI35_V
to VDE 0580
Plug plate to ISO 4400 / DIN 43650
Protection class IP65
Essential for hydraulic proportional-way-, pressure- and current valves. Because of the risk of overheating, the solenoid must never be used separately. The lenght of the fixing screws depends on the base material of the body. An o-ring is used for the valve seal. Information on screws and o-rings will be found in the data sheets relating to the valves concerned. Before changing the plug screw or the screw with integrated manual override, care must be taken to ensure that the solenoid is not under pressure. Risk of injury! The maximum operating pressure is determinded by the valve actually used.
