Proportional pressure reducing cartridge direct operated by pilot spool MPPPM22

Proportional pressure relief valves, proportional pressure reducing valves M22x1,5

Direct operated proportional pressure reducing valve with pilot spool actuation in screw-in cartridge construction for cavity according to ISO 7789. Proportionally to the solenoid current, the solenoid force and the pressure in port A (1) rise. The valve functions practically independently of the pressure in port P (2). Pres­sure increase in the consumer port A (1) to above the adjusted value, e.g. through an active consumer, is avoided by discharging excess oil to the tank T (3). With the solenoid deenergised, the oil flows freely from consumer port A (1) to port T (3). For the control, Wandfluh proportional amplifiers are available (see register 1.13).

Proportional valves Proportional pressure reducing cartridge direct operated by pilot spool MPPPM22

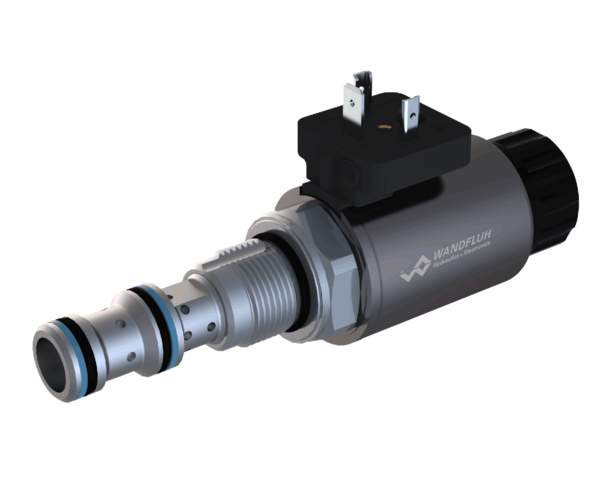

Proportional pressure reducing cartridge​

  • Direct operated by means of pilot spool
  • Qmax = 20 l/min
  • pmax = 350 bar
  • pN red max = 200 bar

Application

These valves are used in hydraulic systems where the pressure has to be changed frequently. The electrical remote control in conjunction with process controls allows economical solutions with repeatable processes. The screw-in cartridge is perfectly suitable for installation in control blocks and is installed in sandwich-  (vertical stacked systems) and in flange plates (corresponding data sheets in this register). Direct operated pressure reducing valves are used where a low minimal adjustable pressure is required. For machining the cartridge cavity in steel and aluminum blocks, cavity tools are available (hire or purchase). Please refer to the data sheets in register 2.13.
