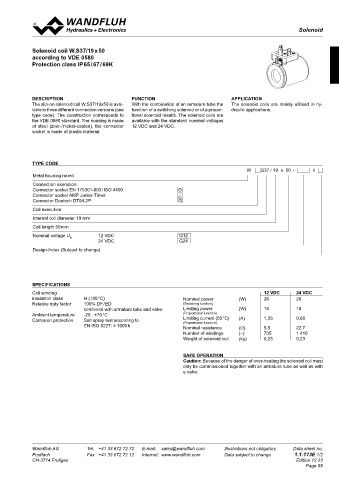

Solenoids
                                                                                                          Solenoid

            Solenoid coil W.S37/19 x 50
            according to VDE 0580
            Protection class IP 65 / 67 / 69K






            DEScrIPtIon                        functIon                           APPlIcAtIon
            The slip-on solenoid coil W.S37/19x50 is avai-  With the combination of an armature tube the   The solenoid coils are mainly utilised in hy-
            lable in three different connection versions (see   function of a switching solenoid or of a propor-  draulic applications.
            type code). The construction corresponds to   tional solenoid results. The solenoid coils are
            the VDE 0580 standard. The housing is made   available with the standard nominal voltages
            of steel (zinc- / nickel-coated), the connector   12 VDC and 24 VDC.
            socket is made of plastic material.





            tyPE coDE
                                                                                        W    S37 / 19  x  50  -   #
             Metal housing round
             Connection execution
             Connector socket EN 175301-803 / ISO 4400          D
             Connector socket AMP Junior-Timer                  J
             Connector Deutsch DT04-2P                          G
             Coil execution
             Internal coil diameter 19 mm
             Coil length 50 mm
             Nominal voltage U      12 VDC                      G12
                          N
                                    24 VDC                      G24
             Design-Index (Subject to change)






            SPEcIfIcAtIonS
            Coil winding                                                                      12 VDc     24 VDc
            insulation class   H (180 °C)                        Nominal power       (W)      26         26
            Relative duty factor   100% DF / ED                  (Switching function)
                              combined with armature tube and valve  Limiting power   (W)     16         16
            Ambient temperature   -20...+70 °C                   (Proportional function)
            Corrosion protection   Salt spray test according to  Limiting current (50 °C)   (A)   1,36   0,68
                                                                 (Proportional function)
                              EN ISO 9227: ≥ 1000 h              Nominal resistance   (Ω)     5,5        22,7
                                                                 Number of windings   (–)     705        1 410
                                                                 Weight of solenoid coil   (kg)   0,23   0,23

                                                                 SAfE oPErAtIon
                                                                 caution: Because of the danger of over-heating the solenoid coil must
                                                                 only be commissioned together with an armature tube as well as with
                                                                 a valve.















            Wandfluh AG         Tel.  +41 33 672 72 72   E-mail:  sales@wandfluh.com   Illustrations not obligatory   Data sheet no.
            Postfach            Fax  +41 33 672 72 12   Internet:  www.wandfluh.com   Data subject to change   1.1-173E 1/2
            CH-3714 Frutigen                                                                             Edition 12 23
