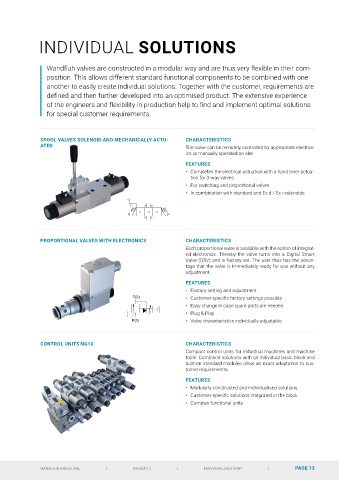

PARAMETERISATION SOFTWARE PASO INDIVIDUAL SOLUTIONS

With the PASO software, all configuration and parameterisation can be carried out via Wandfluh valves are constructed in a modular way and are thus very flexible in their com-

the intuitive user interface with a laptop. In addition, as all important signals can be re- position. This allows different standard functional components to be combined with one
corded or analysed on the screen in real time, the software also provides the possibility another to easily create individual solutions. Together with the customer, requirements are
of troubleshooting. defined and then further developed into an optimised product. The extensive experience
of the engineers and flexibility in production help to find and implement optimal solutions
for special customer requirements.

FUNCTIONALITIES
Despite the multitude of application possibilities, PASO is very
user-friendly and easy to operate. The functional process is SPOOL VALVES SOLENOID AND MECHANICALLY ACTU- CHARACTERISTICS
displayed on the screen as a block diagram. By clicking on ATED The valve can be remotely controlled by appropriate electron-
one of the block diagram symbols, a menu window opens in ics or manually operated on site.
which the parameters associated with the process can be set.
In addition to the connecting lines between the blocks, the FEATURES
feedback value being passed onto the following block is also
displayed in real time. In this way, it is possible to monitor the • Completes the electrical actuation with a hand lever actua-
tion for 3-way valves
effects of a parameter change on the entire system on the
computer, allowing fine tuning to be performed quickly and • For switching and proportional valves

precisely. The set values can then be saved in a parameter file • In combination with standard and Ex d / Ex i solenoids

and can also be loaded directly into a new electronic module.
A B
a 0 b
a b
P T

PARAMETERISATION AND PROGRAMMING ADDITIONAL EXECUTIONS
• PC software PASO (freely available) • Customer-specific software expansions

• Individual process data monitoring • Hardware expansion for additional functions PROPORTIONAL VALVES WITH ELECTRONICS CHARACTERISTICS
• Integrated oscilloscope • Software for application-optimised solutions Each proportional valve is available with the option of integrat-

• Remote control functions • Flexible interface definition ed electronics. Thereby the valve turns into a Digital Smart
• Fieldbus Interface • Electronics integrated in the valve Valve (DSV) and is factory set. The user thus has the advan-
tage that the valve is immediately ready for use without any
adjustment.
FEATURES
• Factory setting and adjustment
T(2) • Customer-specific factory settings possible

• Easy change in case spare parts are needed
• Plug & Play
P(1) • Valve characteristics individually adjustable

CONTROL UNITS NG10 CHARACTERISTICS
Compact control units for industrial machines and machine
tools. Combined solutions with an individual basic block and
built-on standard modules allow an exact adaptation to cus-
tomer requirements.
FEATURES
• Modularly constructed and individualised solutions

• Customer-specific solutions integrated in the block
• Complex functional units

WANDFLUH INDUSTRIAL | PRODUCTS | INDIVIDUAL SOLUTIONS | PAGE 13
